Storage-device thermal simulation published by SimWE · SimWE
Electronics cooling
Simdroid-EC
Technology by SimWE
Make heat visible. Design cooling with confidence.
Thermal and fluid analysis for electronics, from chips and circuit boards to devices and data centres. Built on the Simdroid platform.
Discuss Simdroid-ECBUILT FOR YOUR WORK
From question to insight.
Thermal engineers assessing component temperatures, airflow and cooling concepts.
Analyse heat and flow
Evaluate conduction, convection and radiation in steady or transient conditions.
Compare cooling options
Inspect contours, streamlines and heat-flow statistics to locate bottlenecks.
Application areas
ONE PROJECT · THREE VIEWS
From model to insight.

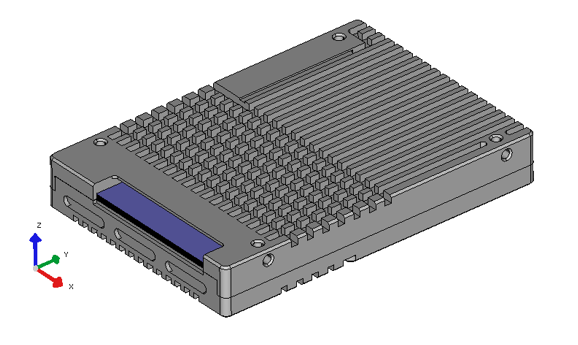

The storage-device geometry imported for analysis.

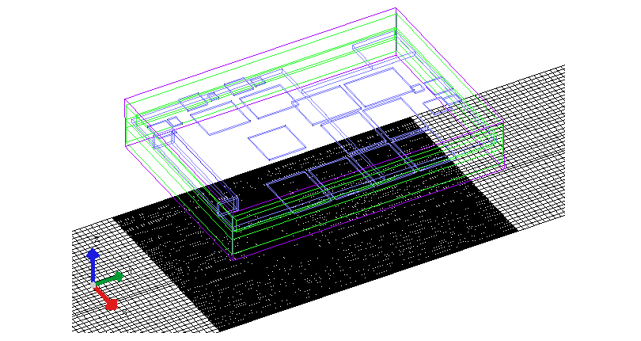

The mesh projection used to inspect discretisation of the same project.

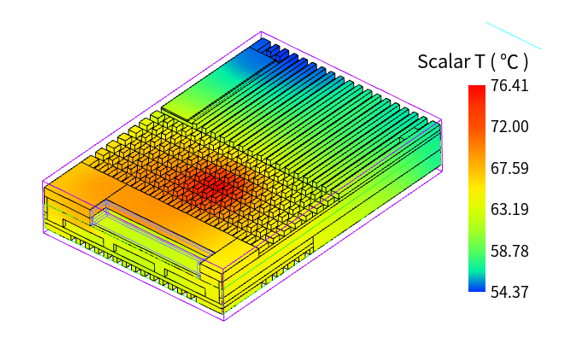

The published temperature result, including its original scale.
Three published views of the same storage-device analysis. Source: SimWE.
Read the original SimWE case ↗
